西門子PLC 6ES7511-1AK02-0AB0S7-1500 CPU 1511-1 PN

點擊圖片查看原圖

品牌：	西門子
系列：	S7-1500 PLC
參數：	SIMATIC S7-1500 CPU 1511-1 PN
所在地：	上海
有效期至：	長期有效
最后更新：	2023-11-08 10:20
瀏覽次數：	338

店鋪基本資料信息

SIEMENS西門子PLC模塊專營
[VIP第4年] 指數:4
通過認證 [誠信檔案]
聯系人李剛(先生) 銷售工程師
會員 [當前離線]
電話17312666086
手機17312666086(微信同號)
地區上海
地址上海市寶山區富聯一路98弄6號

產品詳細說明

西門子PLC S7-1500系列

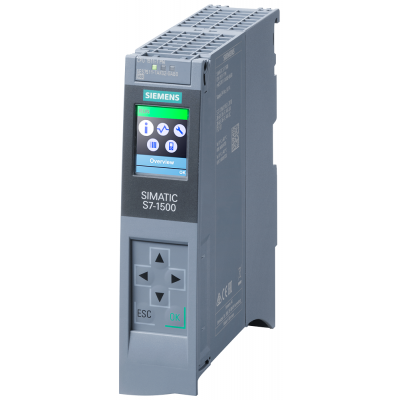

SIMATIC S7-1500 CPU 1511-1 PN

SIMATIC S7-1500, CPU 1511-1 PN, Central processing unit with working memory 150 KB for program and 1 MB for data, 1. interface: PROFINET IRT with 2 port switch, 60 NS bit-performance, SIMATIC memory card necessary

The SIMATIC® S7-1500 Advanced Controller sets new standards with regard to system performance and usability. The seamless Integration of the SIMATIC S7-1500 Controller in the Totally Integrated Automation Portal (TIA Portal) offers advantages, such as common data storage, a uniform operating concept and central services. This makes the use of universal functions particularly easy. With its short system response times, the controller boosts productivity in the twinkling of an eye. For you, this means more flexibility and a shorter product launch time. Various CPU versions, each in several performance classes, are available for SIMATIC S7-1500. The portfolio firstly covers standard CPUs, some with the option of integrating C/C++ code. The 緊湊型 CPUs have integrated digital and analog I/Os, and counting inputs and pulse outputs can be measured directly on the CPU. Thanks to the fail-safe CPUs, Standard and Safety programs can be executed on the same controller. The technology CPUs expand the Motion Control functions available in all SIMATIC S7-1500 controllers for demanding solutions. The SIMATIC S7-1500 Advanced Controller is configured using the SIMATIC STEP 7 Professional software. A SIMATIC Memory Card is required for the operation of this module.

6ES7511-1AK02-0AB0
