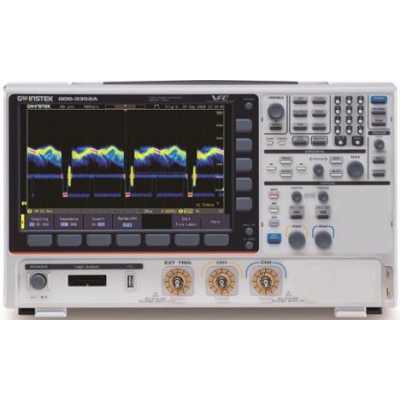

固緯示波器 GDS-3000A數字存儲示波器(GDS-3352A,GDS-3652A,GDS-3354A,GDS-3654A)
650MHz /350MHz帶寬, 2/4 通道
5GSa/s 實時采樣率(單通道); 2.5GSa/s 實時采樣率(雙通道)
每通道200Mpts 記錄長度
200,000 wfm/s 的波形更新率
10.2 inch 800*480 TFT LCD顯示
490,000 分段存儲，波形搜索功能
38 種自動測量功能
高分辨率采集模式
I2C/SPI/UART/CAN/LIN 串行總線觸發與解碼功能
雙通道頻譜分析儀 (DC~2.5GHz)包含光譜圖功能
雙通道25MHz 任意波形發生器
13種電源分析測量功能（選配）
選配16通道邏輯分析儀 (MSO)
固緯示波器 GDS-3000A系列示波器提供每個通道高達200Mpts的記錄長度，超長記錄長度的優點允許用戶即使在低速時間設置下也能保持較高的采樣率。當采樣率比測試頻率高兩倍時，它可以確保捕獲的信號沒有失真，這有利于在低速下長時間觀察信號的變化，這對信號的深入分析非常有幫助。
關于波形更新率，GDS-3000A高達200,000 wfm/s，用戶可以輕松觀察到零星的異常信號。分段存儲器可連續捕獲多達490,000個分段，可與觸發條件設置配合使用，跳過長時間未改變的波形，只記錄有意義的波形，從而提供***有效的內存使用方法。分段內存下還提供掩碼功能，允許用戶快速確定大量信號是否超出目標范圍，并可以快速搜索錯誤波形的時間和實際信號。
在測量功能方面，提供了38種測量項目。精細刻度功能可使用戶根據需要微調垂直刻度，以實現全尺寸測量并提高電壓或電流測量的精度。提供了高分辨率模式的采集方法，有效地消除了噪聲，提高了自動測量的精度。屏幕顯示器右側提供了動態垂直刻度顯示器，使用戶更容易解釋與測量信號相對應的垂直振幅。
標準的1 MΩ和50Ω輸入阻抗的選擇允許用戶根據不同的測量要求選擇輸入阻抗，以實現阻抗匹配。搜索功能可以根據用戶設置快速查找合格信號，這對于查找和比較零星波形非常有幫助。
GDS-3000A 規格
本規格適用于GDS-3000A系列在+20°C~+30°C下通電至少30分鐘。
|
GDS-3352A |
通道 |
2 + Ext |
|
|
帶寬 |
DC ~ 350MHz (–3dB) @50Ω/1MΩ input impedance |
|
|
上升時間 |
1ns (calculated) |
|
|
帶寬限制 |
20MHz/100MHz/200MHz* |
|
GDS-3652A |
通道 |
2 + Ext |
|
|
帶寬 |
DC ~ 650MHz (–3dB) @ 50Ω input impedance DC ~ 500MHz (–3dB) @1MΩ input impedance |
|
|
上升時間 |
535ps (calculated) |
|
|
帶寬限制 |
20MHz/100MHz/200MHz/300MHz* |
|
*帶寬限制公差為±10%。
|
||
|
垂直靈敏度 |
分辨率 |
8 bits (Max.12 bits with Hi Res) For 1MΩ input impedance: 1mV*~10V/div For 50Ω input impedance: 1mV*~1V/div |
|
輸入耦合 |
AC, DC, GND |
|
|
輸入阻抗 |
1MΩ// 22pF approx. |
|
|
DC增益精度 |
1mV: ±5% full scale |
|
|
極性 |
Normal & Invert |
|
|
***大輸入電壓 |
For 1MΩ input impedance: 300Vrms, CAT II For 50Ω input impedance: 5Vrms max. |
|
|
偏移位置范圍 |
For 1MΩ input impedance: 1mV/div ~ 20mV/div :±1V; 50mV/div ~ 500mV/div: ±10V 1V/div ~ 5V/div : ±100V; 10V/div : ±1000V For 50Ω input impedance: 1mV/div ~ 50mV/div:±1V; 100mV/div ~ 1V/div : ±10V |
|
|
波形信號處理 |
+, -, ×, ÷, FFT, User Defined expression FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning or Blackman. |
|
|
觸發 |
Source |
CH1, CH2, Line, EXT |
|
觸發模式 |
Auto (supports Roll Mode for 100ms/div and slower), Normal, Single |
|
|
觸發類型 |
Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Timeout, Alternate, Event-Delay(1~65535 events), Time-Delay(Duration, 4ns~10s), Bus (UART, I2C, SPI, CAN, LIN) |
|
|
Holdoff 范圍 |
4ns to 10s |
|
|
耦合 |
AC, DC, LF rej., HF rej., Noise rej. |
|
|
靈敏度 |
1div |
|
|
外部觸發 |
Range |
±20V |
|
靈敏度 |
DC ~ 100MHz Approx. 100mV |
|
|
輸入阻抗 |
1MΩ±3%~22pF |
|
|
*:在1mV/div和2mV/div下，帶寬限制為20MHz。 |
||
|
水平 |
時基范圍 |
1ns/div ~ 1000s/div (1-2-5 increments) |
|
預觸發 |
10 div maximum |
|
|
后觸發 |
10,000,000 div maximum. |
|
|
時基精度 |
±5 ppm, about ±2ppm increase in error per year |
|
|
信號采集 |
實時采樣率 |
5GSa/s one channel; 2.5GSa/s dual channels |
|
記錄長度 |
Max. 200Mpts /CH |
|
|
采集模式 |
Normal, Average, High Resolution, Peak Detect, Single |
|
|
|
峰值檢測 |
400ps (typical) |
|
|
平均 |
Selectable from 2 to 256 |
|
|
分段數 |
1 to 490,000 maximum |
|
X-Y 模式 |
X-Axis 輸入 |
Channel 1 |
|
Y-Axis 輸入 |
Channel 2 |
|
|
相位偏移 |
±3° at 100kHz |
|
|
光標和測量 |
光標 |
Amplitude, Time, Gating available; Unit: Seconds(s), Hz (1/s), Phase (degree), Ratio (%). |
|
自動測量 |
38 sets with indicator: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, %Flicker, Flicker Idx ,FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase. |
|
|
光標測量 |
Voltage difference between cursors(∆V) Time difference between cursors(∆T) |
|
|
自動計數器 |
6 digits, range from 2Hz minimum to the rated bandwidth |
|
|
控制面板功能 |
Autoset |
Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with “Undo Autoset”, “Fit Screen”/ “AC Priority” mode, and “Fine Scale” functions. |
|
保存設置 |
20 sets |
|
|
保存波形 |
20 sets |
|
|
|
保存參考波形 |
4 sets |
|
電源測量 (選配) |
Power Quality, Harmonics, Ripple, In-rush current, Switching Loss, Modulation, SOA, Transient, Efficiency, B-H curve, Control Loop Response, PSRR, Turn On/Off |
|
|
AWG |
一般 |
|
|
通道 |
2 |
|
|
采樣率 |
200MSa/s |
|
|
垂直分辨率 |
14 bits |
|
|
***大頻率 |
25 MHz |
|
|
波形 |
Sine, Square, Pulse, Ramp, DC, Noise Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac |
|
|
輸出范圍 |
20 mVpp to 5 Vpp, HighZ; 10 mVpp to 2.5 Vpp, 50Ω |
|
|
輸出分辨率 |
1mV |
|
|
輸出精度 |
2% (1 kHz) |
|
|
偏移范圍 |
±2.5 V, HighZ; ±1.25 V, 50 Ω |
|
|
偏移分辨率 |
1mV |
|
|
Sine |
|
|
|
頻率范圍 |
100 mHz to 25 MHz |
|
|
平坦度 |
±0.5 dB < 15MHz; ±1dB 15MHz~25MHz |
|
|
諧波失真 |
-40 dBc |
|
|
雜散（非諧波） |
-40 dBc |
|
|
總諧波失真 |
1% |
|
|
S/N Ratio |
40 dB |
|
|
方波/脈沖波 |
|
|
|
頻率范圍 |
Square: 100 mHz to 15 MHz |
|
|
上升/下降時間 |
< 15ns |
|
|
過沖 |
< 3 % |
|
|
占空比 |
Square: 50% Pulse: 0.4% to 99.6% |
|
|
***小脈沖寬度 |
30ns |
|
|
抖動 |
500 ps |
|
|
斜坡 |
|
|
|
頻率范圍 |
100 mHz to 1MHz |
|
|
線性度 |
1% |
|
|
對稱性 |
0 to 100% |
|
|
頻譜分析儀 |
頻率范圍 |
DC~2.5GHz Max, dual channel with spectrogram (based on Advanced FFT). Notice: Frequency which exceeds analog front end bandwidth is uncalibrated |
|
Span |
1kHz~2.5GHz (Max.) |
|
|
分辨率帶寬 |
1Hz~2.5MHz (Max.) |
|
|
參考電平 |
-80dBm to +40dBm in steps of 5dBm |
|
|
垂直單位 |
dBV RMS; Linear RMS; dBm |
|
|
垂直位置 |
-12divs to +12divs |
|
|
垂直比例 |
1dB/div to 20dB/div in a 1-2-5 Sequence |
|
|
顯示的平均噪聲級 |
1V/div ß -40dBm, Avg :16 100mV/div ß -60dBm, Avg :16 10mV/div ß -80dBm, Avg :16 |
|
|
雜散響應 |
2nd harmonic distortion < 35dBc 3rd harmonic distortion < 40dBc |
|
|
頻域跟蹤類型 |
Normal; Max Hold; Min Hold; Average (2 ~ 256) |
|
|
檢測方法 |
Sample; +Peak; -Peak; Average |
|
|
FFT 窗 |
FFT Factor: |
|
|
邏輯分析儀(選配) |
采樣率 |
1GSa/s |
|
帶寬 |
200MHz |
|
|
記錄長度 |
Per Channel 10M points (max) |
|
|
輸入通道 |
16 Digital (D15 - D0) |
|
|
觸發類型 |
Edge, Pattern, Pulse Width, Serial bus (I2C, SPI, UART, CAN, LIN), Parallel Bus |
|
|
臨界值分組 |
Settable thresholds for: D0-D3, D4-D7, D8-11, D12-15 |
|
|
臨界值選擇 |
TTL, CMOS(5V,3.3V,2.5V), ECL, PECL,0V ,User Defined |
|
|
用戶定義的臨界值范圍 |
±5V |
|
|
***大輸入電壓 |
±40 V |
|
|
***小驅動電壓 |
±250 mV |
|
|
垂直分辨率 |
1 bit |
|
|
Frequency Response Analyzer |
頻率范圍 |
20Hz to 25MHz |
|
輸入與輸出源 |
Channel 1 ~ 2 |
|
|
測試點數量 |
10, 15, 30, 45, 90 points per decade selectable for logarithm scale; 2 ~ 1000 points selectable for linear scale |
|
|
動態范圍 |
> 80dB (typical) |
|
|
測試振幅 |
10mVpp to 2.5Vpp into 50Ω, 20mVpp to 5Vpp into High-Z, Fixed test amplitude or custom amplitude for each decade. |
|
|
測試結果 |
Logarithmic or linear overlaid gain and phase plot, may also overlay with reference plots for cross comparison. Test results saved in csv format for offline analysis. |
|
|
手動測量 |
Tracking gain and phase markers |
|
|
繪圖尺度 |
Auto-scaled during test |
|
|
顯示 |
TFT LCD 類型 |
10.2" TFT LCD WVGA color display |
|
顯示分辨率 |
800 horizontal × 480 vertical pixels (WVGA) |
|
|
內插方式 |
Sin(x)/x |
|
|
波形顯示 |
Dots, vectors, variable persistence (16ms~4s), infinite persistence, gray or color waveforms. |
|
|
波形更新率 |
200,000 waveforms per second, maximum |
|
|
顯示格線 |
8 x 10 divisions |
|
|
顯示模式 |
YT, XY |
|
|
接口 |
USB Port |
USB 2.0 High-speed host port X1, USB High-speed 2.0 device port X1 |
|
以太網 (LAN) |
RJ-45 connector X1, 10/100Mbps with HP Auto-MDIX |
|
|
Go-NoGo BNC |
5V Max/10mA open collector output X1 |
|
|
|
Power Supply Receptacles |
±12V / 600mA for current probe use. Two sets of power supply receptacles for 2CH models; |
|
|
RS232C |
DB-9 male connector X1 |
|
|
VGA 影像輸出 |
DB-15 female connector X1, monitor output for display on VGA monitor |
|
|
選配的 GPIB 模組 |
Fully programmable with IEEE488-2 compliance |
|
|
Kensington 安全鎖插槽 |
Rear-panel security slot connects to standard Kensington-style lock. |
|
其他 |
多國語言菜單 |
Available |
|
操作環境 |
Temperature: 0°C to 50°C. Relative Humidity ≤ 80% at 40°C or below; |
|
|
屏幕幫助 |
Available |
|
|
時間功能 |
Time and Date, Provide the Date/Time for saved data |
|
|
內建Flash 存儲空間 |
800M bytes Single-Level Cell flash memory |
|
|
內建APP |
Go/NoGo, DVM, DataLog, Digital Filter, Frequency Response Analyzer, Mask, Mount Remote Disk, Demo |
|
|
|
用戶自定義按鍵 |
User can select one of the several different preset functions as shortcut key. |
|
|
額定電壓范圍與功耗 |
AC 100V ~ 240V, 50Hz ~ 60Hz, auto selection. power consumption:100W |
|
|
重量 |
Approx. 4.6kg |
|
|
尺寸 |
420mm(W)X 253mm(H)X 113.8mm(D) |
|
|
|
|
標準配件
選配
| DS3A-16LA | 16 Channel Logic Analyzer |
| DS3A-GPIB | GPIB Interface (factory install) |
| GTL-248 | GPIB Cable, Double Shielded, 2000mm |
| GTP-033A | 35MHz 1:1 Passive probe |
| GCP-300 | 300 kHz / 200A Current probe |
| GCP-500 | 500 kHz / 150A Current probe |
| GCP-1000 | 1MHz / 70A Current probe |
| GCP-530 | 50MHz / 30A Current probe |
| GCP-1030 | 100MHz /30A Current probe |
| GDP-025 | 25MHz High voltage differential probe |
| GDP-050 | 50MHz High voltage differential probe |
| GDP-100 | 100MHz High voltage differential probe |
| GKT-100 | Deskew fixture |
| GRA-443-E | Rack Mount kit |
| GTL-232 | RS-232C cable, 9-pin female to 9-pin female, Null modem for computer |
